Motor Stepping Hosiden HP-L 0716A Miniature Four Phase 13 T Gear Bronze Bearings

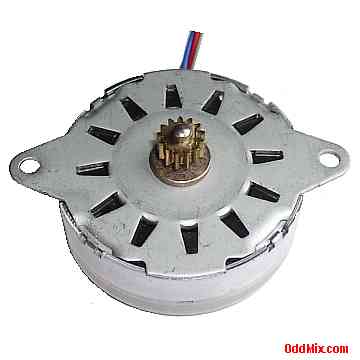

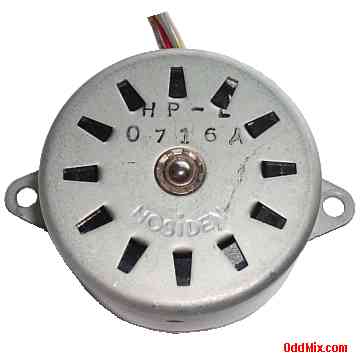

This Hosiden HP-L 0716A is a robust, quality, well made, precision, four phase stepping motor. The 3 millimeter diameter shaft is 9 millimeter long, has an 13 teeth brass gear and it is supported by bronze sleeve bearings. The motor has six color coded wires and a 6 pin inline connector. It is a fine replacement item for printers and scanners and other places. Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Features: • HP-L 0716A Stepping Motor • MFR: Hosiden • 6 color coded wires with 6 pin Connector • Attached long 6 wire assembly - 440 L [mm] • All metal - plated finish • High quality - miniature • Bronze sleeve bearings • Brass gear, 13 T, 7.5 Dia [mm] • Size: 42 Dia, 25 L [mm] (with shaft) • Shaft size: 3.0 dia, 9 L [mm] • Weight: 95 Grams Notes: • Unused, excellent working condition • Price: $50 - Only one available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
