OddMix ELECTRIC MOTORS - STEPPING |

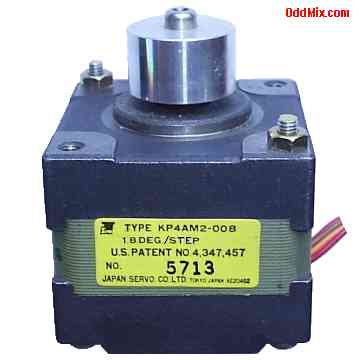

Motor Stepping Japan Servo KP4AM2-008 1.8 Degree Step 12 VDC Six Wire Precision
This is an all metal, miniature, precision quality stepping motor built with all ball bearings. It operates from 12 VDC with 1.8 degree step angle. Motor type No. is: KP4AM2-008. The five millimeter diameter shaft is fourteen millimeter long and it has an aluminum cylinder attached. The motor has six color coded wire terminals terminated in a single six pin connector. This is one of the best made motor in the OddMix collection! Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only two available.
Features: • Stepping Motor - Model: KP4AM2-008 • MFR: Japan Servo Co. Ltd. Made in Japan • Step Angle: 1.8 Degrees • Voltage: 12 VDC - approx. • Motor Current: 75 Ohms, 0.15 A - approx. • Terminals - 6 color coded wires • Ball bearings • Size: 39 W, 39 H, 49.5 L [mm] (with shaft) • Shaft size: 5 dia, 14 L [mm] • Weight: 229 Grams Notes: • Used, excellent working condition • Price: $80 each - 2 available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
