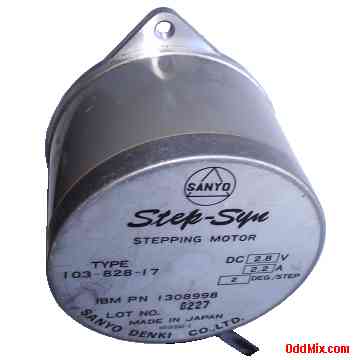

Motor Stepping Sanyo 103-828-17 IBM PN 1308998 2 Deg/Step 2.8 VDC 2.2 A Step-Syn
This is an all metal, precision, made in Japan quality, Step-Syn synchronous stepping motor built with all ball bearings. It operates from 2.8 VDC , 1.5 A with 2 degree step angle. Motor type No. is: 103-828-17 and the IBM P/N: 1308998. The 8 millimeter diameter shaft is 20 millimeter long. The motor has six color coded wires with a six pin in-line connector terminal. This motor capable to develop a great torque and can also be used to continuously run on AC input with a capacitor. Stepping motors make excellent low distortion, high power, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Features: • 103-828-17 Step-Syn Synchronous Stepping Motor • IBM P/N: 1308998 • MFR: Sanyo Denki Co. Ltd. Made in Japan • Steps: 2 Degree each • Voltage: 2.8 VDC , 2.2 A • Terminals - 6 color coded wires with connector • Ball bearings • Size: 87.5 Dia, 98 W, 98 H, 86 L [mm] (with shaft) • Shaft size: 8 dia, 20 L [mm] • Weight: 1319 Grams Notes: • Used, excellent working condition • Price: $120 - Only one available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
