OddMix ELECTRIC MOTORS - STEPPING |
Motor Stepping Sonceboz 6161 R 017 0.25 A/Phase 75 Ohm Swiss Made Bronze Bearings

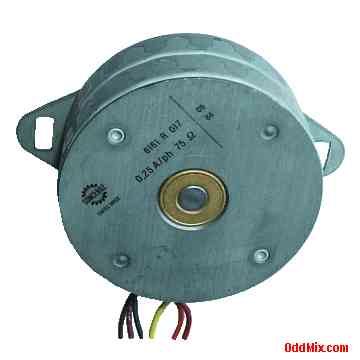

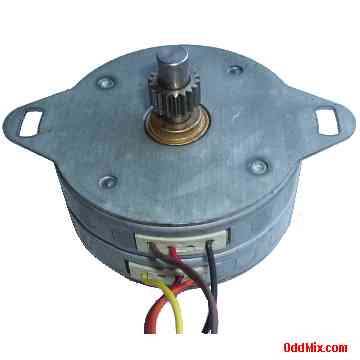

This Sonceboz 6161 R 017 is a robust, quality, Swiss made, precision, four phase stepping motor. The 6.25 millimeter diameter shaft is 16 millimeter long, has an 18 teeth gear and it is supported by substantial bronze sleeve bearings. The motor has six color coded wires and a 10 pin dual-inline connector. Stepping motors make excellent low distortion, adjustable frequency sine wave generators when driven by a DC motor. First come first serve. Only one available.
Features: • 6161 R 017 Stepping Motor • MFR: Sonceboz • Current: 0.25 A/Phase • Resistance: 75 Ohms/Phase • 6 color coded wires with 10 pin Connector • Bronze sleeve bearings • Plated finish - 18 Teeth Gear - included • High quality - Swiss Made • Size: 57 Dia, 48 L [mm] (with shaft) • Shaft size: 6.25 dia, 16 L [mm] • Weight: 260 Grams Notes: • Unused, excellent working condition • Price: $80 - Only one available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
