2N3014 Transistor NPN Motorola High Frequency Voltage Amplifier Silicon Metal TO-31

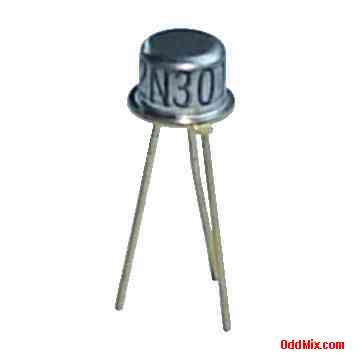

These are some rare, genuine Motorola made 2N3014 Silicon High-Voltage N-P-N Transistors in a metal JEDEC TO-31 Package in new unused condition. These units has gold plated 1 inch long wire leads. These transistors are made for High Frequency Amplifier and Small Signal industrial and commercial applications. They are Planar construction for low noise and leakage and have low saturation voltage. They have a VCE=150 V, capable to handle a 0.02 Ampere continuous collector current, a unity Gain Bandwidth product FTmin=40 MHz and they have a 0.8 Watt maximum power dissipation and a minimum DC beta of 30 with a collector current of 30 mA. These units are real hard to find vintage collector's choice semiconductors. First come first serve, supply is limited.

---

SEMICONDUCTOR TECHNICAL HISTORICAL Features: • 2N3014 NPN Silicon Transistor - Vintage • MFG: Motorola Co. • High Frequency Amplifier - Industrial, Commercial • JEDEC TO-31 metal package • Gold plated case and wire leads • VCE=150 V, IC=0.02 Amax, PD=0.8 W • hFEmin=30 @ IB=30 mA, FTmin=40 MHz • Planar construction for low noise and leakage • Low output capacitance 9 pF max • Low saturation voltage - High Switching Speed Notes: • Unused, vintage units • 1 inch leads - approx. • Price: $15 each • 18 Available • S/H included within continental US

---

• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked
