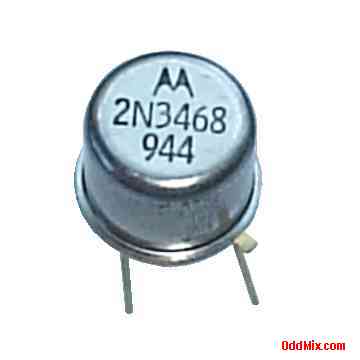

2N3468 Transistor P-N-P Motorola Silicon 1 Watt Planar Metal TO-5 TO-31 Package

These are some rare, genuine Motorola or Fairchield made 2N3468 Silicon High-Voltage P-N-P Transistors in a MIL hermetic Metal JEDEC TO-5 or TO-31 Package in factory new unused condition. These high reliability units has gold plated case and wire leads. These transistors are made for High Speed Switching and Small Signal industrial and commercial applications. They are Planar construction for low noise and leakage and have low saturation voltage. They have a VCE=50 V, capable to handle a 1 Ampere continuous collector current, a unity Gain Bandwidth product FTmin=150 MHz and they have a 1 Watt maximum power dissipation and a minimum DC beta of 25 with a collector current of 500 mA. These units are real hard to find vintage collector's choice semiconductors. First come first serve, supply is limited.

---

SEMICONDUCTOR TECHNICAL HISTORICAL Features: • 2N3468 PNP Silicon Transistor - Vintage • MFG: Motorola, Fairchield Co. • High Speed Switch - Industrial, Commercial • TO-5 and TO-31 metal package • Gold plated case and wire leads • VCE=50 V, IC=1 A, PT=1 W • hFEmin=25 @ IB=500 mA, FTmin=150 MHz • Planar construction for low noise and leakage • Low output capacitance 25 pF max • Low saturation voltage - High Switching Speed Notes: • Unused, vintage units • 0.5 inch leads - approx. • Price: $10 each • 12 Available - [10 Motorola] • S/H included within continental US

---

• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked
