OddMix IconOddMix TRANSISTOR - 2N3646

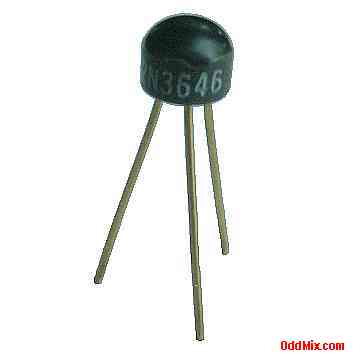

2N3646 Transistor NPN Fairchield Silicon HS Switch TO-92 Package Vintage Collectible

These are some rare find of genuine Faircield made factory new, 2N3646 silicon N-P-N Transistors in a covar TO-92 Package and have gold plated wire leads. These unused vintage units made in the seventies. These transistors are made for High Speed Swicth and Small Signal industrial and commercial applications. They are Planar construction for low noise and leakage and have low saturation voltage. They have a VCE=15 V, capable to handle a 0.20 Ampere continuous collector current, a unity Gain Bandwidth product FTmin=350 MHz and they have a 0.2 Watts maximum power dissipation and a minimum DC beta of 30 with a collector current of 30 mA. These are real hard to find vintage collector's choice semiconductors. First come first serve supply is limited.
2N3646 Transistor Silicon N-P-N HS Switch Fairchield TO-92 Package Vintage Collectible [5 KB]
SEMICONDUCTOR TECHNICAL HISTORICAL

Features:

2N3646 NPN Silicon Transistor - Vintage
MFG: Fairchield Co.
High Speed Switch - Industrial, Commercial
Hermetic, JEDEC TO-92 covar package
Gold plated wire leads
VCE=15 V, ICmax=0.2 A, PT=0.2 W
hFEmin=30 @ IB=30 mA, FTmin=350 MHz
Planar construction for low noise and leakage
Low output capacitance Cob=5.0 pFmax
Low saturation voltage

Notes:

Unused, vintage Price: $15 each 80 Available
S/H included within continental US
