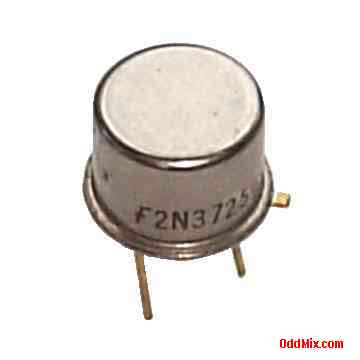

2N3725 Transistor N-P-N Fairchield Silicon Planar MIL JEDEC TO-39 Hermetic Package
These are some rare find of genuine Fairchield and Motorola made 2N3725 Silicon N-P-N Transistors in a MIL Metal JEDEC TO-39 Package in new unused condition. These factory fresh units have gold plated package and wire leads. These transistors are made for High Speed Switching and Small Signal industrial and commercial applications. They are Planar construction for low noise and leakage and have low saturation voltage. They have a VCBO=60 V, capable to handle a 0.5 Ampere continuous collector current, a unity Gain Bandwidth product FTmin=300 MHz and they have a 0.8 Watts maximum power dissipation and a minimum DC beta of 60 with a collector current of 100 mA. These are real hard to find vintage collector's choice semiconductors. First come first serve supply is limited.
Features: • 2N3725 NPN Silicon Transistor - 5 Watt • MFG: Fairchield, Motorola Co. • High Speed Switch - Industrial, Commercial • Hermetic, JEDEC TO-39 metal package • Gold plated package and wire leads • VCBO=50 V, ICmax=0.5 A, PT=0.8 W • hFEmin=60 @ IB=100 mA, FTmin=300 MHz • Planar construction for low noise and leakage • Low output capacitance - Low saturation voltage • High Switching Speed • Direct replacement for 2N1613 Notes: • Unused, original • $10 each • Limited Availability • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
