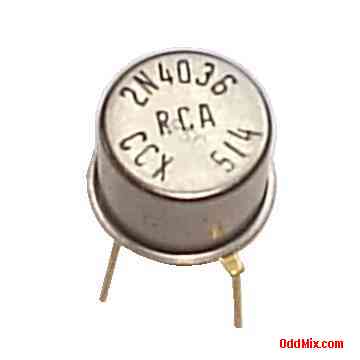

2N4036 Transistor P-N-P RCA Silicon 7 Watt Planar Metal MIL TO-5 TO-31 Package

These are some rare, genuine RCA made 2N4036 Silicon P-N-P Transistors in a MIL hermetic Metal JEDEC TO-5 or TO-31 Package in factory new, unused condition. These high reliability units has gold plated case and wire leads. These medium power transistors are made for High Speed Switching and General Purpose industrial and commercial applications. They are Planar construction for low noise and leakage and have low saturation voltage. They have a VCE=65 V, capable to handle a 1 Ampere continuous collector current, a unity Gain Bandwidth product FTmin=60 MHz and they have a 7 Watt maximum power dissipation and a minimum DC beta of 50 with a collector current of 150 mA. These units are real hard to find vintage collector's choice semiconductors. First come first serve supply is limited.

---

SEMICONDUCTOR TECHNICAL HISTORICAL Features: • 2N4036 Medium Power PNP Silicon Transistor • MFG: RCA Solid State • General Purpose Industrial Commercial • TO-5 and TO-31 metal package • Gold plated case and wire leads • VCE=65 V, IC=1 A, PT=7 W • hFEmin=50 @ IC=150 mA, FTmin=60 MHz • Planar construction - Low noise and leakage • Low output capacitance 25 pF max • Low saturation voltage - High Switching Speed Notes: • Unused, vintage units • 0.5 inch leads - approx. • Price: $15 each - Limited Availability • S/H included within continental US

---

• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked
