0Z4 Full-Wave High Voltage Gas Rectifier Delco Metal Vacuum Tube Reference

This is an original cold cathode Delco 0Z4 Full-Wave Gas Rectifier Electronic Tube. It is a rare antique, hard to find, classic collector's special vacuum tube. At one time these metal type tubes used in many special circuits and old timer receivers, transmitters and transcievers. Excellent for those antique radio restoration projects or to set up a private vacuum tube museum. For reference only - no longer available!

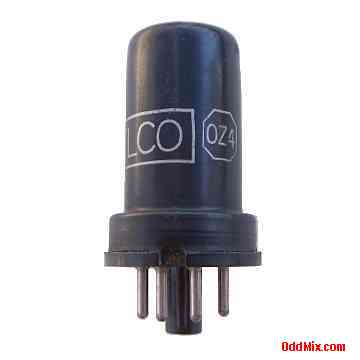

0Z4 Full-Wave High Voltage Gas Rectifier Electronic Delco Metal Vacuum Tube [5 KB]
REFERENCE PAGE - INFORMATION ONLY

Vacuum Electron Tube Base 4R [2 KB]
Features:

0Z4 Full-Wave Gas Rectifier
• MFG: Delco • Metal Tube
• Power Supply applications
• Base: 8-pin octal - 4R
• Substitute: 0Z4A, 0Z4G
• High quality Made in USA
• Plate: 300 Vmax, 75 mAmax
• Heater: No - Ionically Heated Cold Cathode Tube

Notes:

No longer Available
Data For Reference Only
0Z4 Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrode Shield - Anode 1 - Anode 2 - NC Cathode
