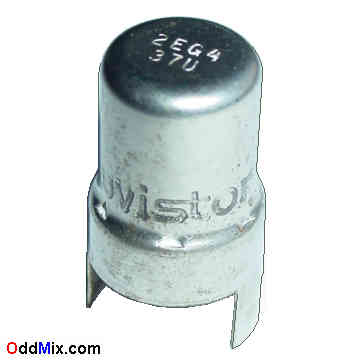

2EG4 High-Mu Triode Amplifier Miniature RCA Nuvistor Electronic Vacuum Tube
This is an original RCA 2EG4 High-Mu Triode electronic nuvistor tube. This tube was developed as an RF amplifier in VHF television and FM receivers. A High-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. Useful for antique radio and TV [television] restoration projects or to set up a private vacuum tube museum. It is OEM tube - used, working condition.
Features: • 2EG4 High-Mu Triode • MFG: RCA • Quality Made in USA • Class A amplifier • Heater: 1.7 V, 0.6 A • Plate Voltage: 300 Vmax • Plate Current: 15 mAmax • Plate Power: 1.5 Wmax • Base: 12-pin nuvistor, ceramic Notes: • OEM - tube without box • Used • Price: $25 • One available • S/H included within continental US |
2EG4 12-Pin Nuvistor Miniature Electroinc Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Electrode | IC | Anode | IC | Grid | IC | IC | IC | Cathode | IC | Heater | IC | Heater |
