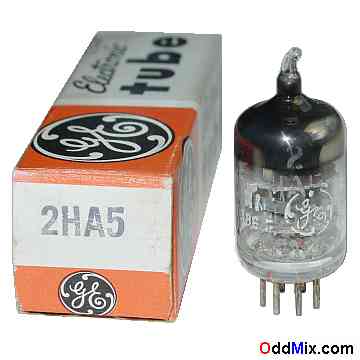

2HA5 High-Mu Triode Amplifier Miniature GE Electronic Vacuum Tube
This is an original GE 2HA5 High-Mu Triode electronic tube. This tube is electronically identical to the 2HM5. The 2HM5/2HA5 is identical to the 6MH5/6HA5 tube except the lower filament voltage. This tube was developed as an RF amplifier in VHF television and FM receivers. A High-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. Useful for antique radio restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.
Features: • 2HA5 - 2HM5 High-Mu Triode • MFG: GE • Quality Made in USA • Class A amplifier • Heater: 2.2 V, 0.6 A • Plate Voltage: 135 Vmax • Plate Current: 11.5 mAmax • Base: 7-pin miniature, all glass Notes: • NOS - [New Old Stock] tube • Original box • Unused • Price: $12 • One available • S/H included within continental US |
2HA5 Miniature 7-Pin All Glass Electroinc Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Electrode | Grid 1 | Cathode | Heater | Heater | Anode | Int Shield | Cathode |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
