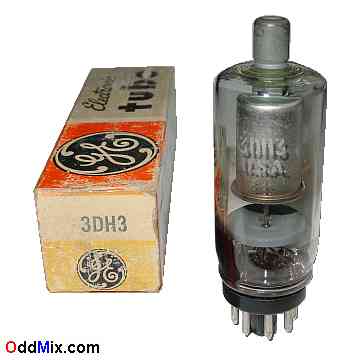

3DH3 Half-Wave High Voltage 38 KV X-Ray Diode Rectifier GE Electronic Vacuum Tube
This is an original GE 3DH3 electronic tube in original box. Applications for this tube is for high-voltage low-current half-wave rectifier applications, usually in television receivers or HV, HF equipments. Useful for antique radio or television restoration, high voltage project, X-Ray generation or to set up a private vacuum tube museum. It is a NOS tube - new old stock, unused, boxed, excellent condition.
Features: • 3DH3 Half-Wave Vacuum Rectifier Tube • MFG: GE • Quality Made in USA • Pulsed Rectifier, HV, HF Rectifier • Heater: 3.15±0.5 V, 0.48 A - 1.6 pF • Plate: 30,000 Vmax, 110 mAmax - 2.2 mAavg • Base: 8-pin octal • Collectible Notes: • NOS - [New Old Stock] tube • Original box • Unused • Price: $15 • One available • S/H included within continental US |
3DH3 Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | CAP |
Electrode | NC | NC | F | F C IS | F | F C IS | NC | F C IS | Anode |
C=Cathode, F=Filament, IC=ICection - Do NOT Use, NC=NCection
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
