4JC6A Pentode Sharp-Cutoff Frame-Grid RF Amplifier GE Vacuum Tube

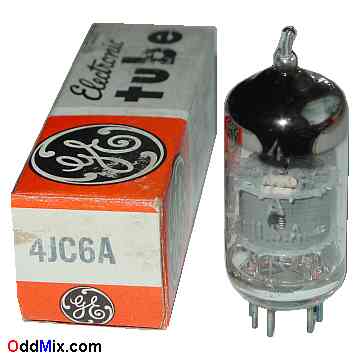

This is an original GE 4JC6A Sharp-Cutoff Frame-Grid Pentode electronic vacuum tube. This is a collector's special, difficult and expensive to make, electronic vacuum tube. This nine pin, all glass, noval type used as a high gain RF or IF amplifier, usually in class-A configuration in many instruments, radio and television (TV) receivers. Excellent part for antique radio or television restoration, circuit design or for rare tube collection. It is an NOS [New Old Stock] tube with box, unused. Only one available.
Features: • 4JC6A Sharp-Cutoff Frame-Grid Pentode • MFG: GE • Quality Made in USA • RF, AF Amplifier, Oscillator • Heater: 4.5 V, 0.45 A • Plate: 330 Vmax, 14 mAmax, 3.1 Wmax • Base: 9-pin noval, all glass - Collectible Notes: • NOS - New Old Stock tube • Original box • Unused • Price: $25 • One available • S/H included within continental US |
4JC6A Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Cathode | Grid 1 | Cathode | Heater | Heater | Int Shield | Anode | Grid 2 | Grid 3 |
