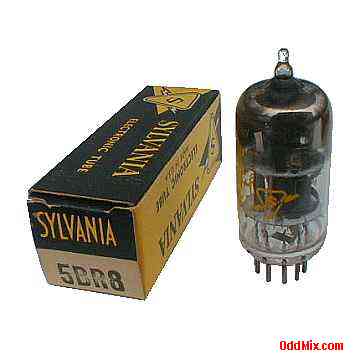

5BR8 Medium-Mu Triode Sharp-Cutoff Pentode Sylvania Electronic Vacuum Tube
This is an original Sylvania 5BR8 Medium-Mu Triode Sharp-Cutoff Pentode electronic tube. Essential to restore antique black-and-white and color television receivers. Applications for this controlled heater warm-up time tube is a combined triode oscillator and pentode mixer. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.
Features: • 5BR8 Medium-Mu Triode, Sharp-Cutoff Pentode • MFG: Sylvania • Quality Made in USA • IF, RF/AF, Video, AGC Amplifier, Oscillator • Heater: 4.7 V, 0.6 A • Plate: 330 Vmax, 12.5 mAmax, 2.8 Wmax - Pentode • Base: 9-pin noval, all glass - Collectible Notes: • NOS - New Old Stock tube - Original box • Unused • Price: $25 • One available • S/H included within continental US |
5BR8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Grid-1 T | Anode T | Cathode T | Heater | Heater | Anode P | Grid-2 | Cath-P, G3 | Grid-1 P |
