6BC8/6BZ8 Sharp Cutoff Pentode Amplifier GE Electron Vacuum Tube

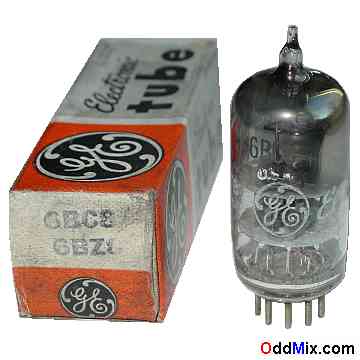

This is an original GE 6BC8/6BZ8 Medium-Mu Twin Triode electron tube in its original box. Miniature type used as RF or IF amplifiers in high-frequency wide-band applications up to 400 MHz. Excellent part for replacement, antique radio, intrument or television restoration, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, in excellent condition.
Features: • 6BC8/6BZ8 Medium-Mu Twin Triode • MFG: GE High quality Made in USA • RF, IF, AF Amplifier, Oscillator • Heater: 6.3 V, 0.4 A • Plate: 250 Vmax, 2.2 Wmax - Each • Base: 9-pin noval miniature Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $20 - One available • S/H included within continental US |
6BC8/6BZ8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Anode T1 | Grid-1 T1 | Cathode 1 | Heater | Heater | Anode T2 | Grid-1 T2 | Cathode 2 | IS |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
