6BH8 Medium-Mu Triode Sharp-Cutoff Pentode Raytheon Electronic Vacuum Tube 2

This is an original 6BH8 Medium-Mu Triode, Sharp-Cutoff Pentode electronic tube made for Raytheon in Japan. This tube useable in VHF television and FM receivers. A Medium-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

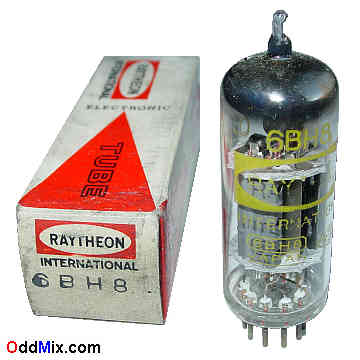

6BH8 Medium-Mu Triode Sharp-Cutoff Pentode Raytheon Electronic Vacuum Tube 2 [15 KB]
HARD TO FIND ORIGINAL HISTORICAL TUBE

Features:

6BH8 Medium-Mu Triode, Sharp-Cutoff Pentode
• MFG: Raytheon - High quality Made in Japan
RF, IF, AF Amplifier, Oscillator
• Heater: 6.3 V, 0.6 A
• Plate: 300/300 Vmax - 2.5/3.0 Wmax Triode/Pentode
• Base: 9-pin miniature, all glass

Notes:

NOS - [New Old Stock] tube • Original box
• Unused - Price: $30 - One available
S/H included within continental US
6BH8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode Cath T Grid-1 T Anode T Heater Heater Cath G3 P Grid-1 P Grid-2 P Anode P
