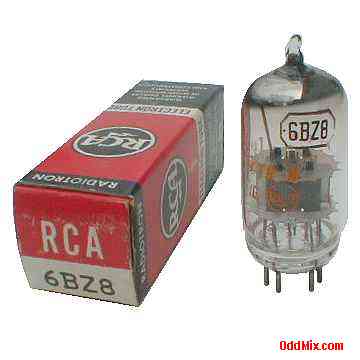

6BZ8 Medium-Mu Twin Triode RCA Radiotron Oscillator Amplifier Electron Vacuum Tube
The RCA Radiotron 6BZ8 Medium-Mu Twin Triode is used for vertical deflection oscillator and amplifier in television receivers. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.
Features: • 6BZ8 Medium-Mu Twin Triode - Discontinued • MFG: RCA Radiotron - High quality Made in USA • Oscillator, Amplifier • Heater: 6.3 V, 0.4 A • Anode: 125 Vmax, 10 mAmax each side • Base: 9-pin miniature Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $30 - One available • S/H included within continental US |
6BZ8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Anode 1 | Grid-1 1 | Cathode 1 | Heater | Heater | Anode 2 | Grid-2 1 | Cathode 2 | IS |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
