6CB5A Beam Tube Power Amplifier Sylvania Electronic Vacuum Tube

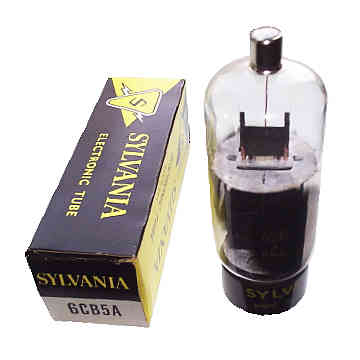

This is an original Sylvania 6CB5A Beam Type Electronic Tube. This tube was developed for horizontal deflection power amplifier use in intercarrier televisions, radio receivers and audio amplifiers. A beam power tube with a heater-cathode and three grids can be used for many other special purpose circuits like oscillators and RF amplifiers. Excellent for replacement, antique radio, instrument, TV television restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition. Only one available.
Features: • 6CB5A Beam Power Tube • MFG: Sylvania - High quality Made in USA • Audio Power Amplifier, Oscillator • Heater: 6.3 V, 2.5 A • Plate: 700 Vmax, 200 mAmax • Power: 23 Wmax - Class C • Base: Octal Glass Notes: • NOS - [New Old Stock] tube in • Original box • Unused - Price: $35 - One available • S/H included within continental US |
6CB5A Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Cap |
Electrode | Grid-2 | Heater | Cath G3 | Grid-1 | Grid-1 | Cath G3 | Heater | Grid-2 | Anode |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
