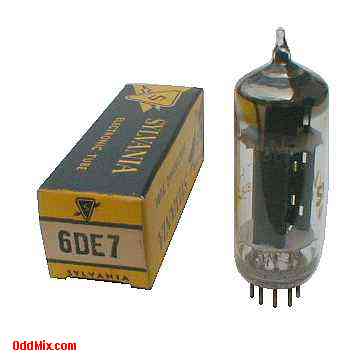

6DE7 Dual Triode RF Oscillator Class A Amplifier Sylvania Electronic Vacuum Tube
The 6DE7 Dual Triode is used for vertical deflection oscillator and amplifier in television receivers. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Excellent for those antique radio and television restoration projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed, excellent condition.
Features: • 6DE7 Dual Triode Electron Tube • MFG: Sylvania - High quality Made in USA • Oscillator, amplifier • Heater: 6.3 V, 0.9 A • Anode: 250 Vmax, 5.5 mAmax - unit one • Anode: 150 Vmax, 35 mAmax - unit two • Base: 9-pin noval, miniature all glass Notes: • NOS - New Old Stock tube • Original box • Unused - Price: $40 - One available • S/H included within continental US |
6DE7 Noval 9-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Anode T2 | Grid T2 | Grid T2 | Heater | Heater | Anode T1 | Grid T1 | Cath T1 | Cath T2 |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
