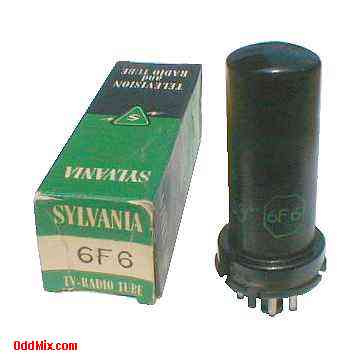

6F6 Beam Power Sylvania Audio Amplifier Metal Electronic Vacuum Tube Reference Info
This is a genuine, original 6F6 Sylvania Beam Power Electronic Tube. Developed for horizontal deflection Class A amplifier use in receivers. Excellent for those antique radio and television restoration projects or to set up a private vacuum tube museum. This historical tube is no longer available!
Features: • 6F6 Beam Power Tube • MFG: Sylvania - High quality - Made in USA • Power Amplifier Audio • Heater: 6.3 V, 0.7 A • Plate: 375 Vmax - Pentode Class A • Plate Power: 11 Wmax - Pentode Class A • Base: 8-pin octal - Metal Tube Notes: • No longer Available • Data For Reference Only • 1976 Price: $11.60 - Sylvania List - May 1, 1976 |
6F6 Octal 8-Pin Metal Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Electrode | Shield | Heater | Anode | Grid-2 | Grid-1 | - | Heater | Cath G3 |
