6KZ8 Medium-Mu Triode, Sharp-Cutoff Pentode Motorola Golden Electron Vacuum Tube

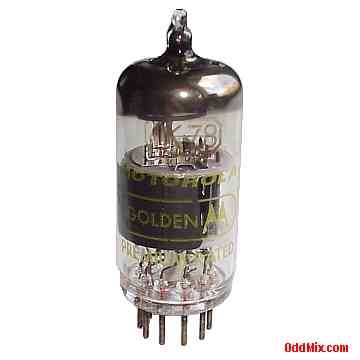

This is an original Motorola 6KZ8 Medium-Mu Triode, Sharp-Cutoff Pentode electronic vacuum tube. This is a collector's special vacuum tube. This tube useable in RF circuits, VHF television (TV) and FM receivers. A Medium-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. Excellent for those antique radio or television restoration projects or to set up a private vacuum tube museum. It is an OEM tube without box, unused, excellent condition. Only one available.
Features: • 6KZ8 Medium-Mu Triode, Sharp-Cutoff Pentode • MFG: Motorola Golden Tube - Quality Made in USA • Class A amplifier, Oscillator • Heater: 6.3 V, 0.45 A • Plate: 330/330 Vmax - Triode/Pentode • Plate Current: 13.5/12 mAmax - Triode/Pentode • Base: 9-pin miniature, all glass Notes: • OEM tube - Without box • Unused - Price: $30 - One available • S/H included within continental US |
6KZ8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrode | Anode T | Grid-1 P | Cath G3 IS P | Heater | Heater | Anode P | Grid-2 P | Cath T | Grid T |
