6X4 Sylvania Full-Wave Vacuum Rectifier Electronic Tube Reference

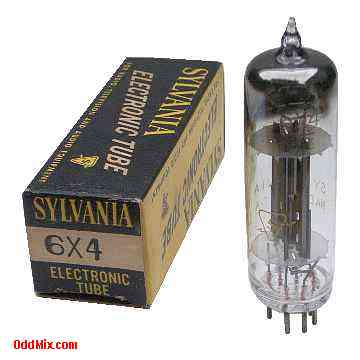

This is an original Sylvania 6X4 Full-Wave Vacuum Rectifier electronic tube. Used in power supply of automobile and ac-operated radio receivers. For reference only - no longer available!
Features: • 6X4 Full-Wave Vacuum Rectifier • Sylvania - High quality Made in USA • Heater: 6.3 V, 0.6 A • Plate Voltage: 1,250 PIVmax • Plate Current: 350 mAmax DC • Base: 7-pin miniature all glass Notes: • No longer Available • Data For Reference Only • 1976 Price: $4.85 - Sylvania List - May 1, 1976 |
6X4 Miniature 7-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Electrodes | Anode 2 | NC | Heater | Heater | NC | Anode 1 | Cathode |
