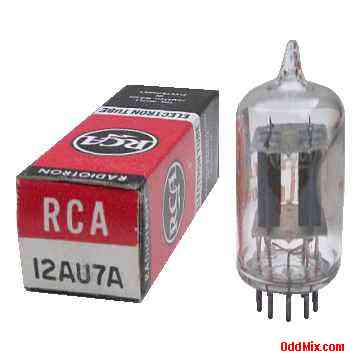

12AU7A Medium-Mu Twin Triode RCA Radiotron Electron Tube Data Picture Reference
This is an original 12AU7A Electron Tube. This tube was developed for push-pull amplifier in ac/dc radio equipment. Also used for amplifiers, multivibrators or oscillators. Also a good general purpose dual triode replacement. It is new, unused, boxed, excellent condition. Excellent for antique radio restoration projects or to set up a private vacuum tube museum. Presently this historical vacuum tube is not available. Data For Reference Only!
Features: • 12AU7A Medium-Mu Twin Triode Electron Tube • MFG: RCA Radiotron • Quality Made in USA • Amplifier, Oscillator • Substitute: ECC82 • Heater: 12.6/6.3 V, 0.15/0.3 A - Series/Parallel • Plate Voltage: 330 Vmax - 22 mAmax • Plate Dissipation: 5.5 Wmax - Both Plates • Base: 9-pin miniature all glass Notes: • 1976 Price: $4.10 - Sylvania List - May 1, 1976 • No longer Available • Data For Reference Only |
12AU7A Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrodes | Anode 2 | Grid 2 | Cath 2 | Heater 2 | Heater 1 | Anode 1 | Grid 1 | Cath 1 | Heater-Ctr |
