OddMix VACUUM TUBE - 13DR7 |

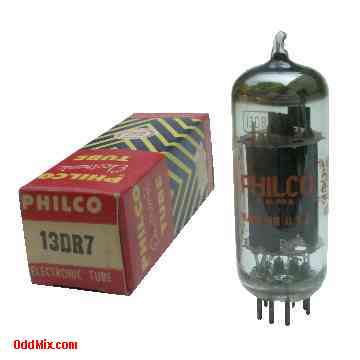

13DR7 Low-Mu Triode, Hi-Mu Triode Philco Electronic Tube Miniature
This is a genuine, vintage, discontinued, rare, discontinued, historical Philco 13DR7 Hi-Mu Low-Mu Dual Triode miniature electronic tube. Developed for combined vertical oscillator and deflection amplifier in television receivers. Useful for antique radio and television restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition. First come first serve, only one available!
Features: • 13DR7 Low-Mu Triode, Hi-Mu Triode • MFG: Philco • High quality Made in USA • Power Amplifier, Oscillator • Heater: 13 V, 0.45 A • Plate Unit 1: 250 V, 1.4 mAmax - Class A • Plate Unit 2: 150 V, 35 mAmax - Class A • Base: 9-pin noval, miniature all glass Notes: • NOS - [New Old Stock] tube • Original box • Unused • Price: $30 • One available • S/H included within continental US |
13DR7 Noval 9-Pin, Miniature, All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrodes | Anode 2 | Grid 2 | Grid 2 | Heater | Heater | Anode 1 | Grid 1 | Cathode 1 | Cathode 2 |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
