25DN6 Beam Tube RCA Radiotron Vacuum Electronic Tube Power Amplifier

This is an original RCA Radiotron 25DN6 Beam Power Tube. Developed for horizontal deflection power amplifier use in intercarrier televisions, radio receivers and audio amplifiers.A beam tube with a heater-cathode and three grids can be used for many other special purpose circuits like oscillators and RF amplifiers. Useful for SW QRP transmitters, antique radio restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition. Only one available.

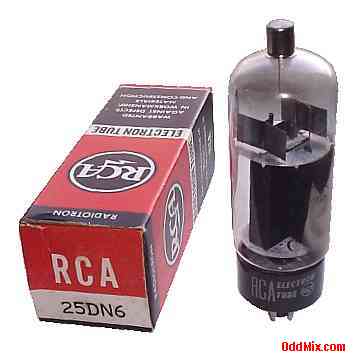

25DN6 Beam Tube Power Amplifier Glass Octal RCA Radiotron Electronic Vacuum Tube [11 KB]
HARD TO FIND - HISTORICAL TUBE

Features:

25DN6 Beam Power Tube
• MFG: RCA Radiotron • Quality Made in USA
• Power Amplifier, AF, RF, Oscillator
• Heater: 25 V, 0.6 A
• Plate: 125 V, 70 mA, 15 Wmax - Class A
• Base: 8-Pin Octal, Glass

Notes:

NOS - [New Old Stock] tube • Original box
• Unused • Price: $40 • One available
S/H included within continental US
25DN6 Octal 8-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 Cap
Electrodes NC Heater Cath G3 NC Grid-1 NC Heater Grid-2 Anode
