35Z5GT Half-Wave Rectifier RCA Radiotron Electron Tube Reference Information

This is a genuine, vintage, no longer made, RCA Radiotron Electron Tube. These 8-pin octal tubes typically used as half wave rectifiers as power supply tube for ac/dc radio receivers and special purpose circuits. Useful for restoration projects or to set up a private vacuum tube museum. This tube is no longer available.

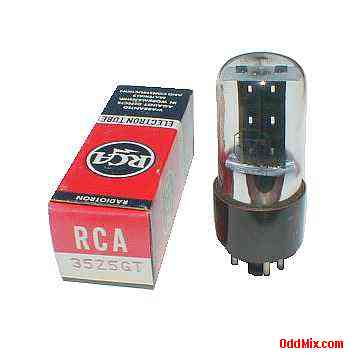

35Z5GT RCA Radiotron Half Wave Rectifier Electron Tube [9 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:

35Z5GT Half Wave Rectifier Tube
• MFG: RCA Radiotron • Quality Made in USA
• Medium Voltage Rectifier
• Heater: 35 V, 0.15 A
• Plate: 700 Vmax, 600 mAmax
• Base: 8-pin octal, all glass

Notes:

1976 Price: $4.70 - Sylvania List - May 1, 1976
No longer Available
Data For Reference Only
35Z5GT Octal 8-Pin Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrode NC Heater Heater Tap - Anode - Heater Cathode
