OddMix IconOddMix VACUUM TUBE - DY802

DY802 High Voltage Diode Vacuum Rectifier Half-Wave Valvo Vacuum Electron Tube

This is a genuine, rare, vintage, discontinued, rare, historical, European type DY802 High Voltage Diode Vacuum Rectifier Half-Wave electron tube. This tube is used for high-voltage low-current half-wave vacuum pulse rectifier applications. Excellent collectible and for antique radio or television restoration projects, experimentation with high voltage and X-Rays or to set up a private vacuum tube museum. This tube is capable to work with voltages as high as 20 kVdc plus! It is a NOS tube [New Old Stock], unused, boxed, good condition.

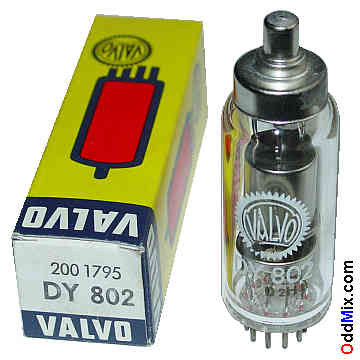

DY802 Valvo High Voltage Diode Vacuum Rectifier Half-Wave Vacuum Electron Tube [15 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

DY802 HV Pulse Rectifier Half-Wave Electronic Tube
• MFG: Valvo
• Pulsed Vacuum, RF Rectifier - X-Ray Emitter
• Heater: 1.4 V, 0.55 A - 1.4 pF heater to Anode
• Plate: 22,000 Vmax, 0.8 Amax - 40 mA Average
• Base: 9-pin vith cap - all glass noval type
• High quality Made in Germany

Notes:

NOS - [New Old Stock] tube • Original box
• Unused - Price: $15 - One available
S/H included within continental US
DY86 Vacuum Tube 9-pin Miniature Noval Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9 10 11 CAP
Electrode Fil 1 Fil 2 - Fil 1 Fil 2 Fil 1 - Fil 1 Shield Fil 2 Cathode Anode
