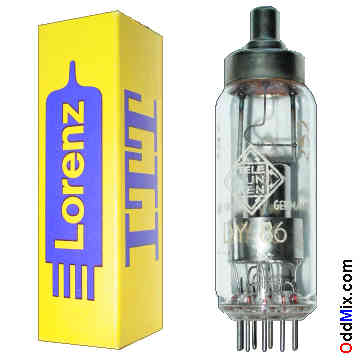

DY86 High Voltage Diode Vacuum Rectifier Half-Wave Telefunken Electron Tube
This is a genuine, rare, vintage, discontinued, historical, European type DY86 High Voltage Diode Vacuum Rectifier Half-Wave electron tube. This tube is used for high-voltage low-current half-wave vacuum pulse rectifier applications. Excellent collectible and for antique radio or television restoration projects, experimentation with high voltage and X-Rays or to set up a private vacuum tube museum. This tube is capable to work with voltages as high as 20 kVdc plus! It is a NOS tube [New Old Stock], unused, boxed, good condition.
Features: • DY86 Half-Wave HV Pulse Rectifier Electronic Tube • MFG: Telefunken • Made in Germany quality • Pulsed Vacuum, RF Rectifier - X-Ray Emitter • Heater: 1.4 V, 0.55 A - 1.4 pF heater to Anode • Plate: 22,000 Vmax, 0.8 Amax - 40 mA Average • Base: 9-pin vith cap - all glass noval type Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $15 - One available • S/H included within continental US |
DY86 Vacuum Tube 9-pin Miniature Noval Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | CAP |
Electrode | Fil 1 | Fil 2 | - | Fil 1 | Fil 2 | Fil 1 | - | Fil 1 | Shield | Fil 2 | Cathode | Anode |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
