PC92 High-Mu HF Triode Tungsram Vacuum Electronic Tube Amplifier Oscillator Converter

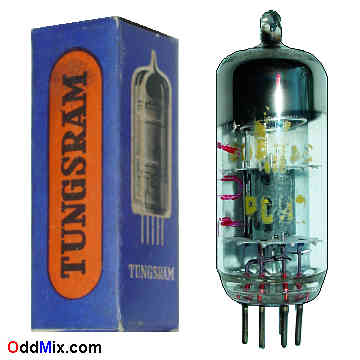

This is an original Tungsram PC92 High-Mu H.F. Triode electronic tube. Good subtitute - except for the filament voltage - are the EC92 and 6AB4. This tube is useable as push-pull cathode-drive amplifier and frequency converter in VHF television and FM receivers. A High-Mu triode may be used for many other special purpose circuits like oscillators, multi-vibrators, blocking ocsillators and RF amplifiers for replacement, antique radio or television restoration projects, experimentation or to set up a private vacuum tube museum. One available!
Features: • PC92 High-Mu RF Triode • Class A Amplifier, Oscillator, Mixer • MFG: Tungsram - High quality Made in Hungary • Heater: 3.1 V, 300 mA • Plate: 250 Vmax - 12 mAmax • Base: 7-pin miniature, all glass Notes: • NOS - [New Old Stock] tube • Original box • Unused - Price: $30 - One available • S/H included within continental US |
PC92 Miniature 7-Pin All Glass Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Electrodes | Anode | - | Heater | Heater | - | Grid-1 | Cathode |
