OddMix VACUUM TUBE - PCF82 |
PCF82 Medium-Mu Triode Sharp-Cutoff Pentode Lorenz IT&T Vacuum Tube VHF FM

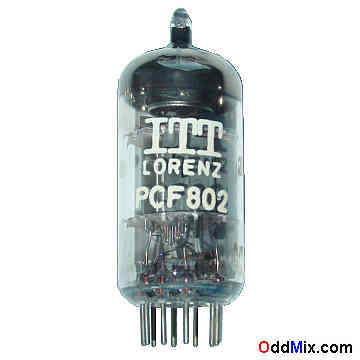

This is an original Lorenz IT&T PCF82 Medium-Mu Triode Sharp-Cutoff Pentode electron tube. Good subtitute - except for the filament voltage - are the ECF802 and 9JW8, 6GH8A. This tube useable in VHF television and FM receivers. A Medium-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. Excellent for those antique radio or television restoration projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.
Features: • PCF82 Medium-Mu Triode Sharp-Cutoff Pentode • MFG: Lorenz IT&T - High quality Made in USA • RF Amplifier, Oscillator, Mixer • Heater: 9.0 V, 300 mA • Plate: 150/170 Vmax Triode/Pentode • Plate Current: 11/10 mAmax Triode/Pentode • Base: 9-pin glass • Substitute: ECF802, 9JW8, 6GH8A Notes: • NOS - [New Old Stock] tube • Without box • Unused - Price: $30 - One available • S/H included within continental US |
ECC83 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrodes | Anode T | Grid-1 P | Grid-2 P | Heater | Heater | Anode P | Cath G3 SH | Cath T | Grid-1 T |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
