PLC200 Triode, Pentode Telefunken Vacuum Electronic Tube Amplifier Oscillator

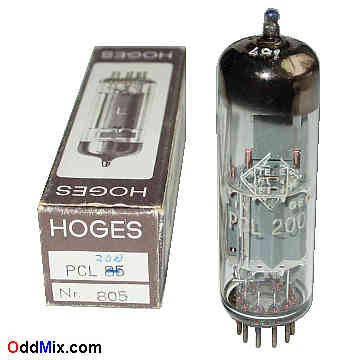

This is an original Telefunken PLC200 Triode, Pentode combination electron tube in a ten pin - decal - all glass envelope. This tube - were truly a latest - addition to the vacuum tube family of devices. It was made for use as a complete video amplifier in TV [televison] sets. Because of the tube's high bandwith, it is an excellent choice to build a Hi-Fi audio amplifier. A triode-pentode combination may be used for many other special purpose circuits, oscillators and AF amplifiers. Excellent for replacent part, antique radio or television restoration, projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.
Features: • PLC200 Triode-Pentode Decal Vacuum Tube • MFG: Telefunken - High quality Made in Germany • AF, HF Amplifier, Oscillator, Mixer • Heater: 15.5 V, 300 mA • Plate: 200/150 Vmax Triode/Pentode • Plate Current: 8.5/40 mAmax Triode/Pentode • Base: 10-pin Decal, all glass • Substitute: ECL200 Notes: •• NOS - [New Old Stock] tube • Hoges box • Unused - Price: $35 - One available • S/H included within continental US |
PCL200 Decal 10-Pin All Glass Miniature Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Electrodes | Anode T | Grid-1 T | Cath T | C G3 SH P | Heater | Heater | Anode P | Grid-2 P | Grid-1 P | Grid-2 P |
