EKA ABC Super Five Tube Radio 1936 Vintage Restoration Data Picture Schematic

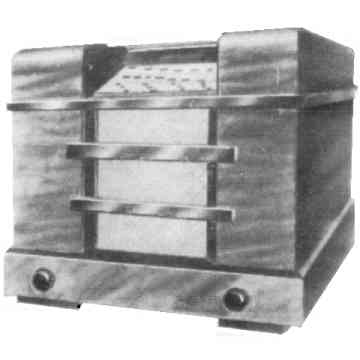

This is a EKA ABC Super was a classy, high price, top of the line World Receiver, a five tube, three band radio set from 1936. It had an IF section using a low 127 kHz for the benefit of higher gain in lower IF [Intermediate Frequency] frequencies. LW [Long Wave], MW [Medium Wave] and SW [Short Wave] was, and still is, a standard mode of operation on European radios. The radio is housed in a large stylish wooden enclosure and an illuminated wide colored glass scale with the European city names marked for each strong station.
EKA ABC Super Five Tube Radio 1936 Vintage Restoration Data Picture Schematic [8 KB]
