Orion 011 Two Tube Audion Radio 1940 Vintage Restoration Data Picture Schematic

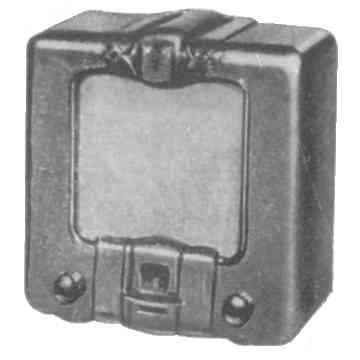

This wartime Orion 011 was a low price, simple basic receiver, a two tube, single band, clever design radio set from 1940. It was a reflex feedback audion straight receiver without IF frequency amplification. The first tetrode part of the dual VCL11 tube is used as RF [Radio Frequency] and AF [Audio Frequency] amplifier. The triode half of the first tube provided further audio amplification. Designed to be used with a good long antenna, and ground it was a very dependale set. The radio is housed in a basic bakelit enclosure with a small illuminated glass scale with the European city names marked for each strong station. This exact set was also sold as the Philips 22V, Telefunken 140V, 141V, and Standard 2011.
Orion 011 Two Tube Audion Radio 1940 Vintage Restoration Data Picture Schematic [7 KB]
